    Sunvell T9 Android 8.1 TV Box Review

    Sunvell T9 Android 8.1 TV Box HD Network Media Player Set-top Box RK3328 Bluetooth 4G Memory 32G Android 8.1 USB3.0


    The tv box in this review came direct from the guys over at

    Sunvell
    who have been building TV box's for a few years now and do a good job of it.






    Hi Guys,Another Tv box to take a look at and review,The

    Sunvell T9
    a Rockchip powered TV box yes i here your alarm bells ringing (Rockchip) arhhh lol lol.The T9 im testing is the 4/32GB version that should be more than enough room for most users,Running Android 8.1 out the box.Theres no top and bottom bars in the UI i should mention too.




    Info from webpage
    ¤ "Android 8.1 Oreo TV Box With Built-in Cortex A53 Quad Core Processor With WiFi Perfect For Home Entertainment. Massive 4GB Ram, 32GB MMC Flash storage make sure the system is running fast and stable, ensure a smooth user experience. The H.265 and VP9-10 Profile-2 decoding provide nice streaming for large files. Best for playing 3D Games and Videos.

    ¤ T9 comes with a very capable hardware configuration that allows it to play 4K videos even at 60fps smoothly. Powered by RK3328 CPU along with Mali 450MP2 GPU support, the latest Android device provides you a glimpse of the future of television.

    ¤ USB Host: USB 2, support USB DISK and USB HDD, TF Card: Support TF Card supports up to 32GB. ( Not included), SPDIF: SPDIF optical output, AV: Composite AV output, DOLBY TrueHD and DTS HD: DOLBY TrueHD and DTS HD Bypass through HDMI, Mouse/ Keyboard: Support mouse and keyboard via USB; Support 2.4GHz wireless mouse and keyboard via 2.4GHz USB dongle, Bluetooth keyboard or mouse via Bluetooth. ( Not Included).

    ¤ HDD file system: FAT16/FAT32/NTFS, 3D: Hardware 3D graphics acceleration, Support Subtitle: SRT/SMI/SUB/SSA/IDX+USB, OSD type of languages: English/French/German/bish/Italian/ etc multilateral languages, Power Supply: DC 5V 2A, Power Consumption.: 10W, Power Type: External Power Adapter, Power Indicator (LED): Power ON Blue, sleep: Red.

    ¤ Media Supported, Decoder Format: H.265, Video format: 4K,ASF,AVI,DAT,FLV,ISO,MKV,MPEG,MPG,RM,RMVB,TS,VOB ,WMV, Audio format: AAC,AC3,APE,DDP,DTS,FLAC,HD,MP3,OGG,TrueHD,WAV,WMA , Photo Format: BMP,GIF,JPEG,PNG,TIFF, Interface: DC Power Port,HDMI,RJ45,SPDIF,USB2.0, Remote Controller Battery: 2 x AAA Battery ( not included )



    Looks and feel
    It comes with just the one launcher installed.A tv box launcher (Nova launcher dont work)

    The device itself is a very nice looking black tv box at 10.5cm by 10.5cm square with 4 rubber Pads,Lots of venterlation holes on the underside & both sides.Front facing clock 24h or 12h,It has 2 full sized USB ports one USB3 & one USB2,Micro SD card slot that is hidden next to the USB port,HDMI port,Power input,AV port,RJ45 port & a Spdf port.The IR remote has good range & works ok (Air mouse is better)There is a recovery button hidden behind the AV hole on the rear.



    Front of the T9 is the clock

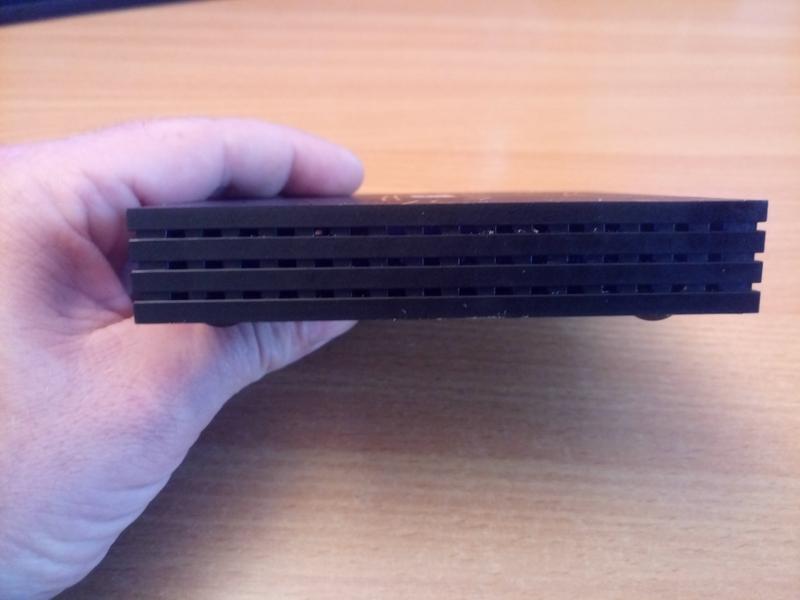

    Right hand side is nothing but venterlation holes

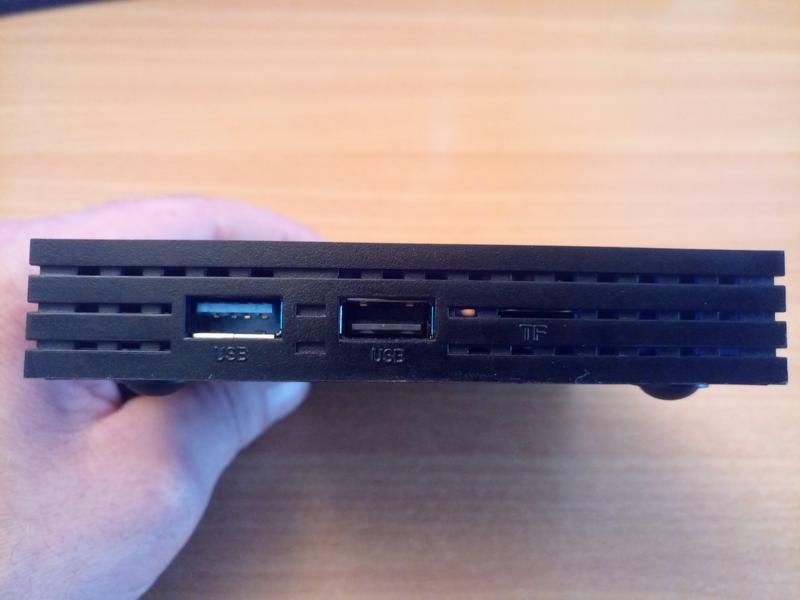

    Left hand side is the USB2,USB3 & SD Cart slot along with more venterlation holes.

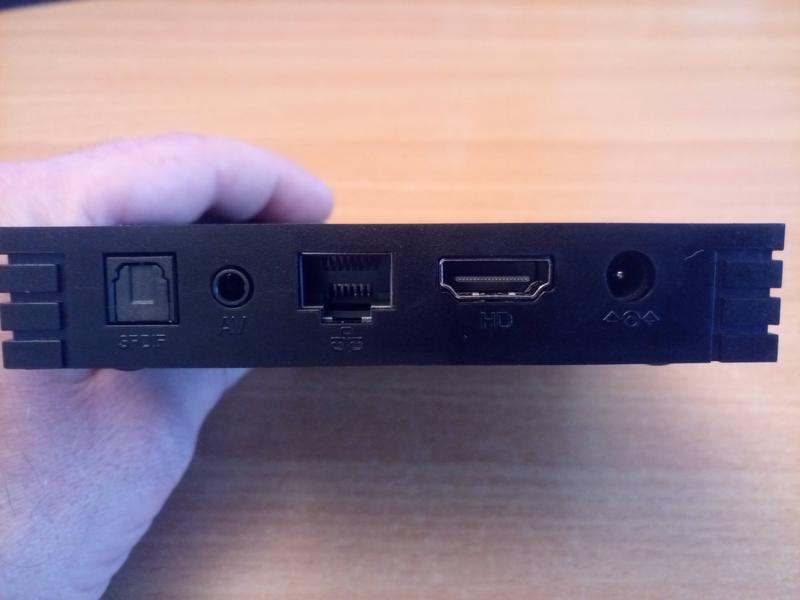

    Rear is the SPDF,AV,LAN,HDMI & Power port Not forgetting the hidden recovery button behind the AV hole

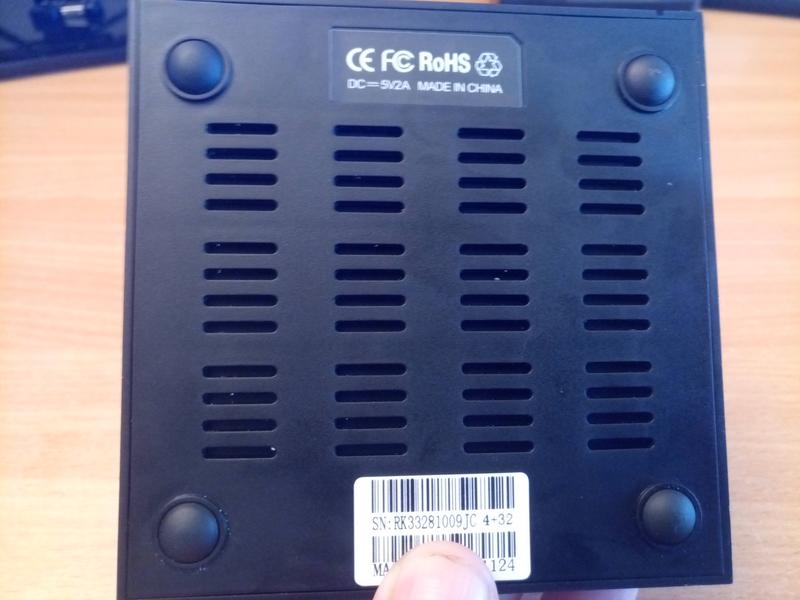

    Underside plenty of the venterlation holes again


    The T9 is very easy to take apart,Just remove the 4 rubber pads and undo the 4 screws on the bottom.



    Some internal photos

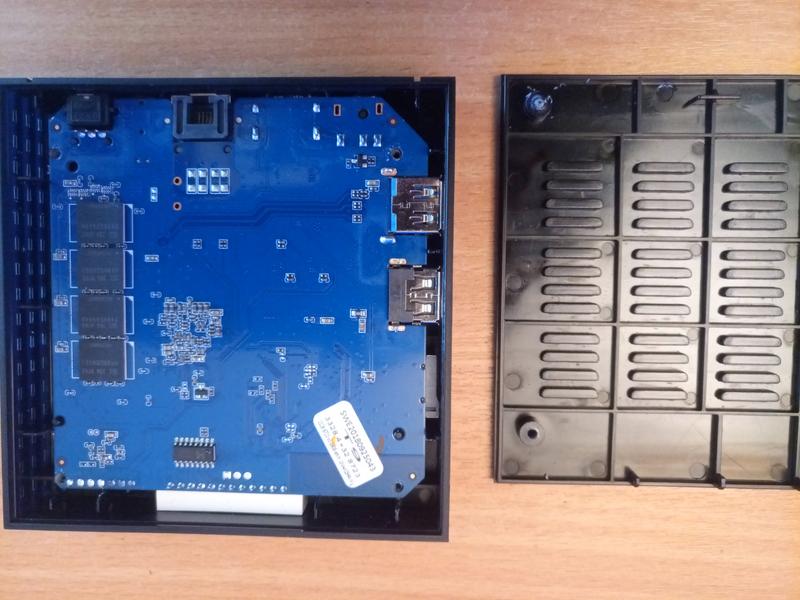

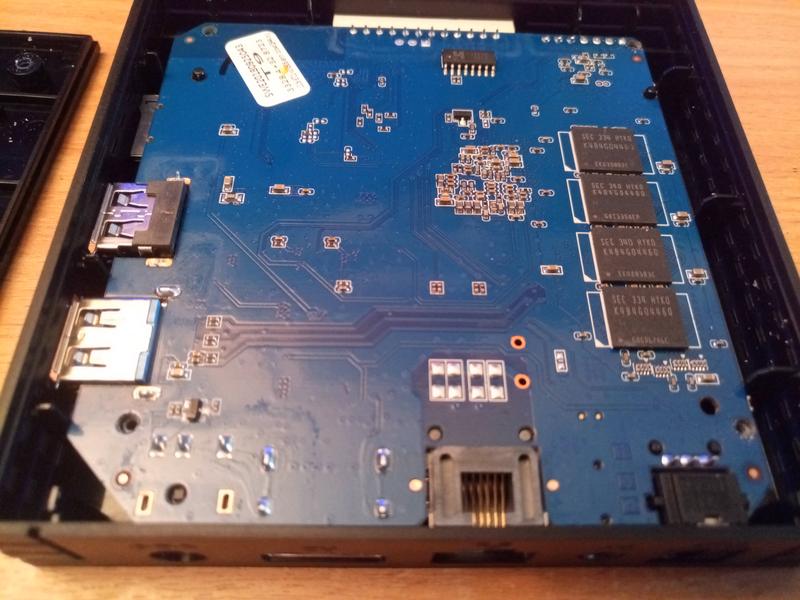

    Bottom cover removed

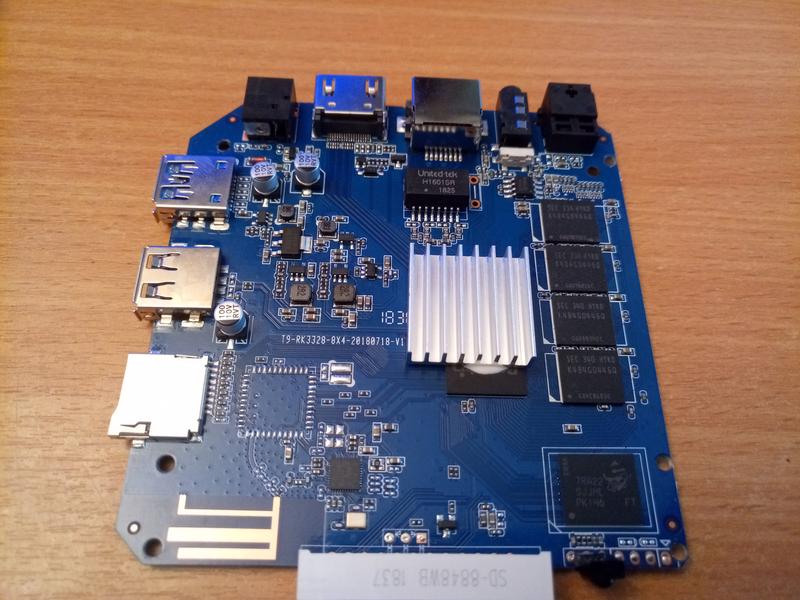

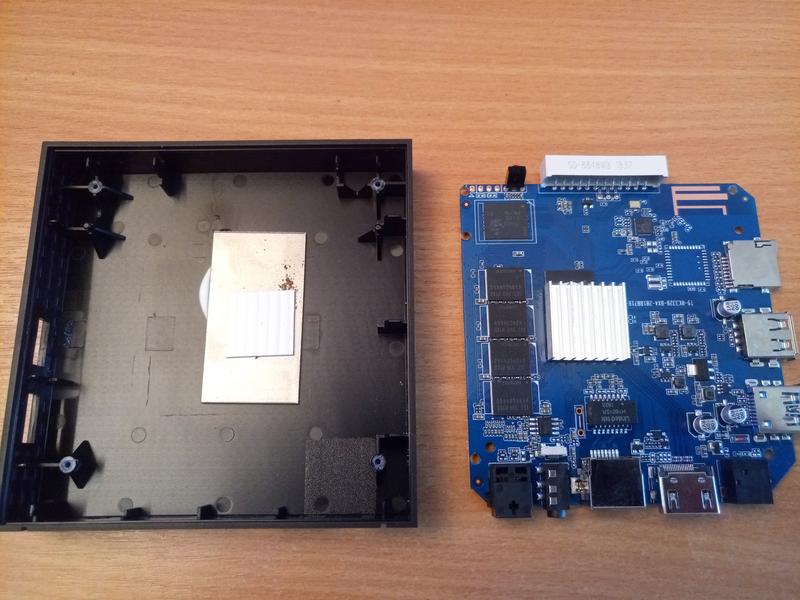

    No screws or clips hold in the PCB, just lift out

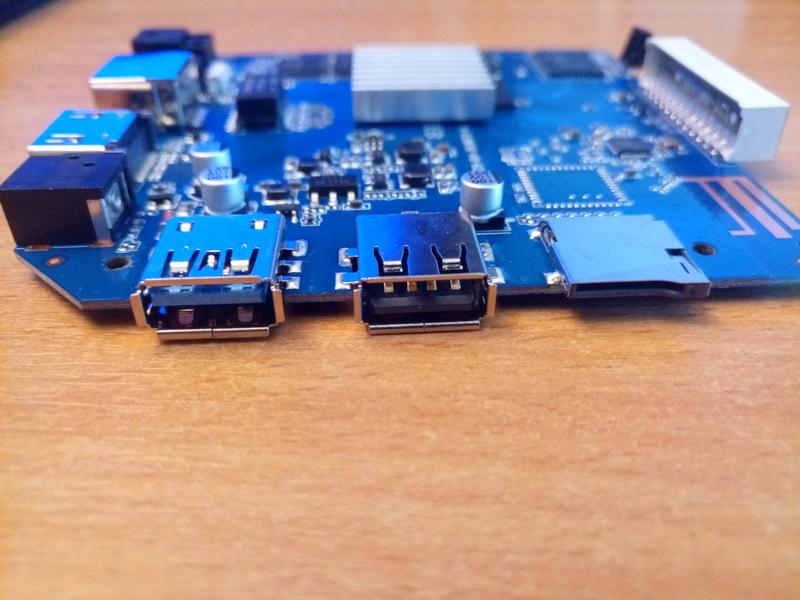

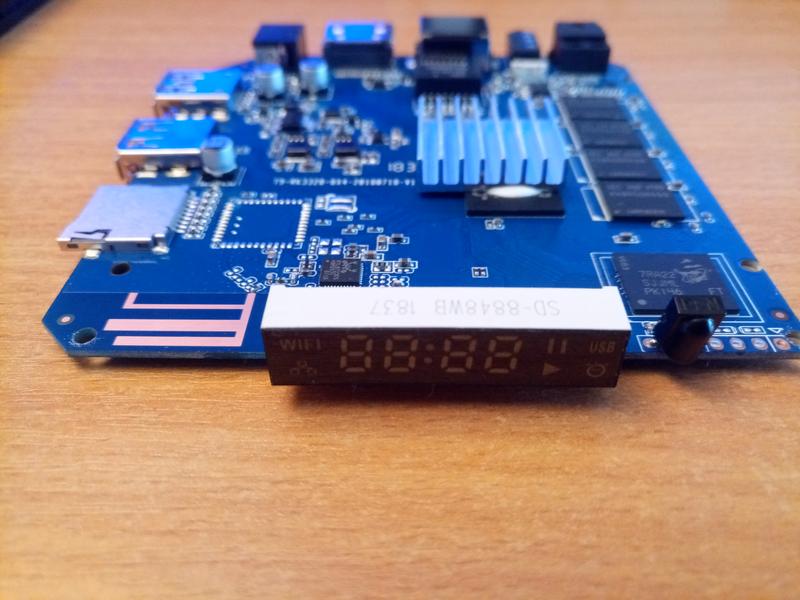

    Ports




    Hidden Recovery button

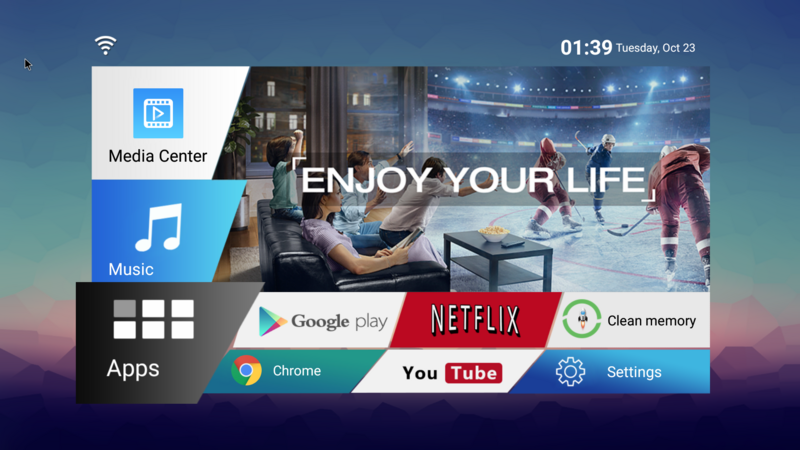

    Right then so lets have a tinker,the device takes around 50 seconds to boot up to the home screem (Shown below)


    The T9 is running Android 8.1 and is doing the job so far,The device is also rooted.

    A different looking UI to what we are used to that can be changed to some extent, like adding your own apps to the home screen.

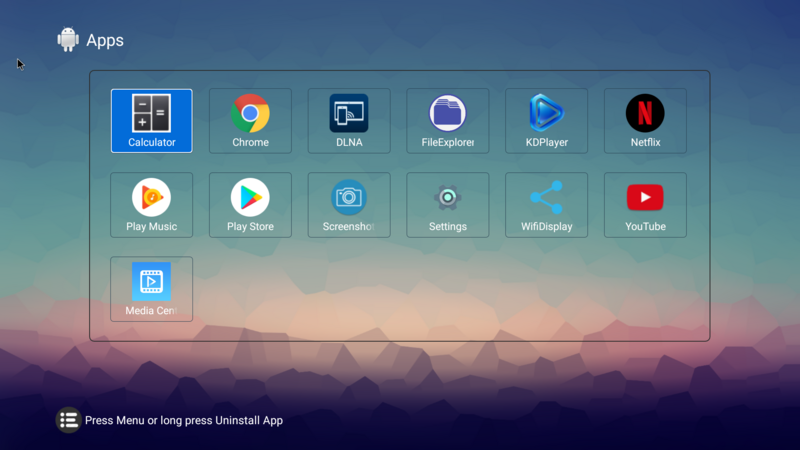

    Theres no crap installed just the basic stuff to get you going (App Draw below)


    Chrome

    KDPlayer (Kodi 18 beta)

    Netflix

    playstore

    Youtube

    Google play store is pre installed and working fine showing apps that i like to see on a tv box

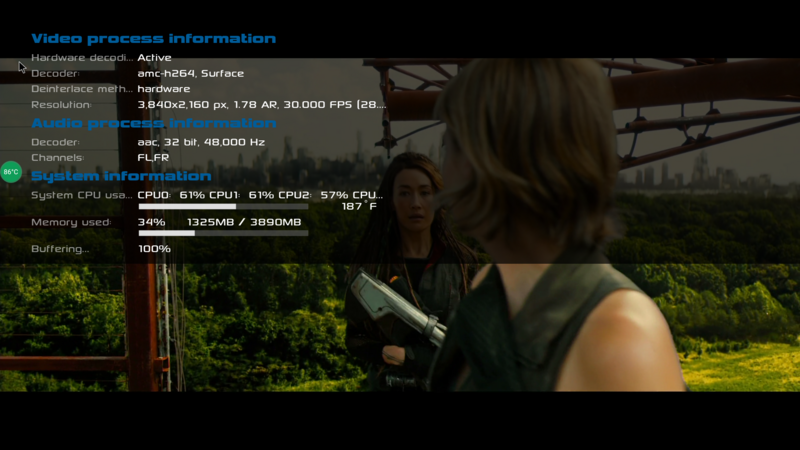

    Tested out KDPlayer crashed 3 or 4 times so removed that and installed kodi 17.6 Now kodi works great set up a good build and it is running very well even 4k seems ok but the device does get rather hot up to 92c showing on CPU Monitor.


    Netflix,All good there working fine.

    Amazon Prime Video dont work.Installs ok but once you click on anything you want to watch it returns to the main menu.

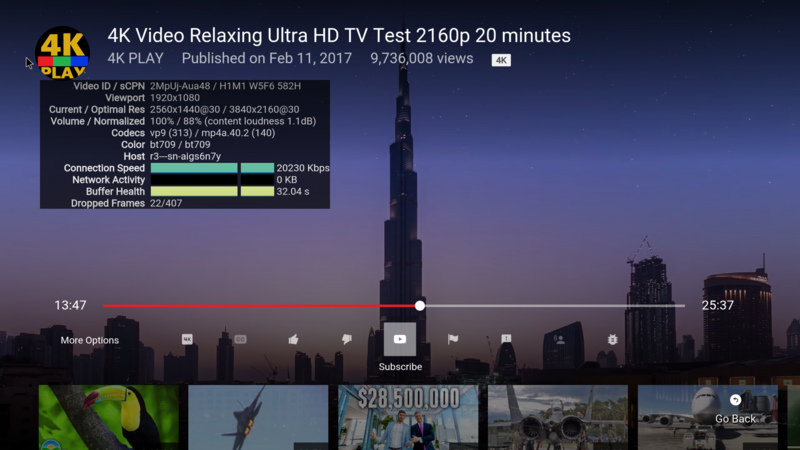

    Youtube,All good and working fine




    Some teck stuff

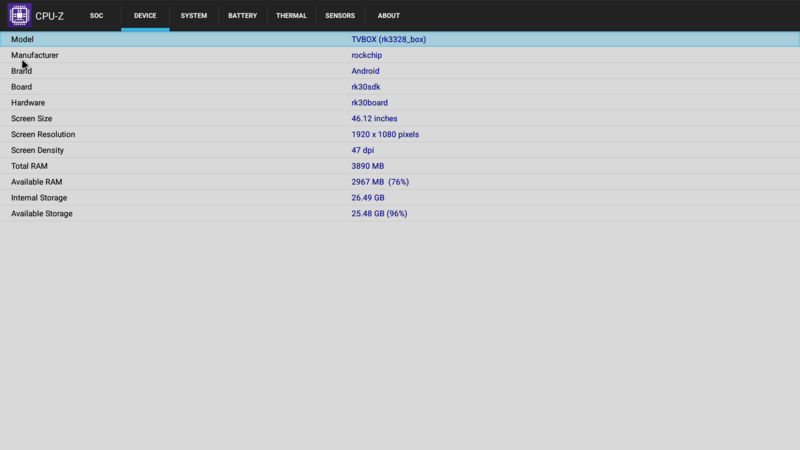

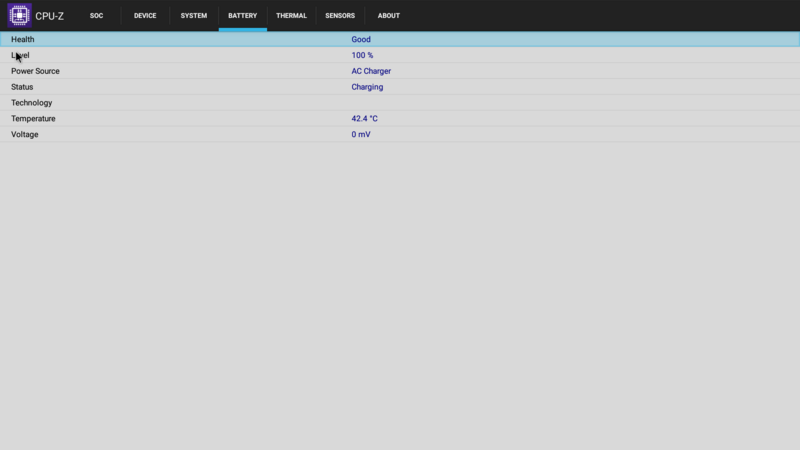

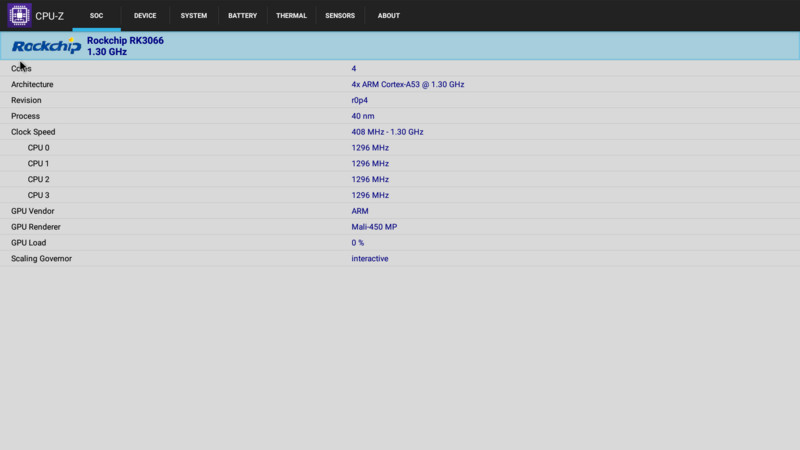

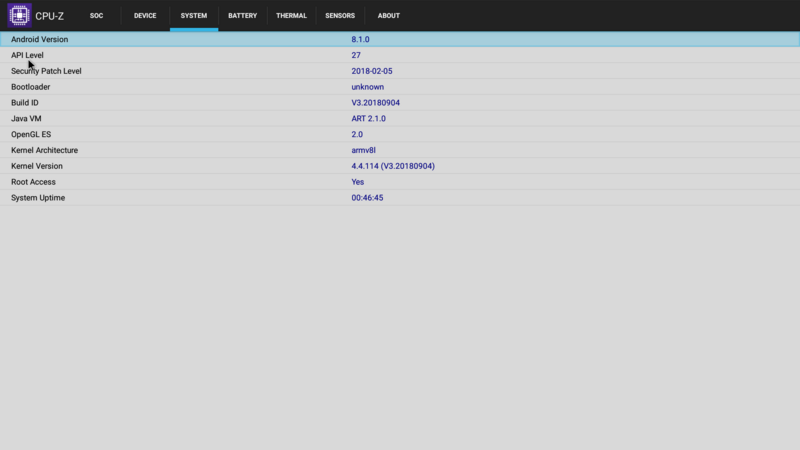

    CPU Z







    Antutu Bench mark

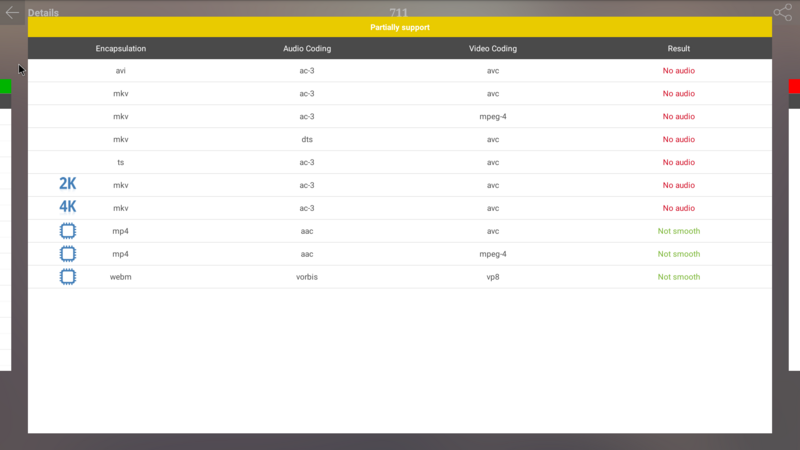

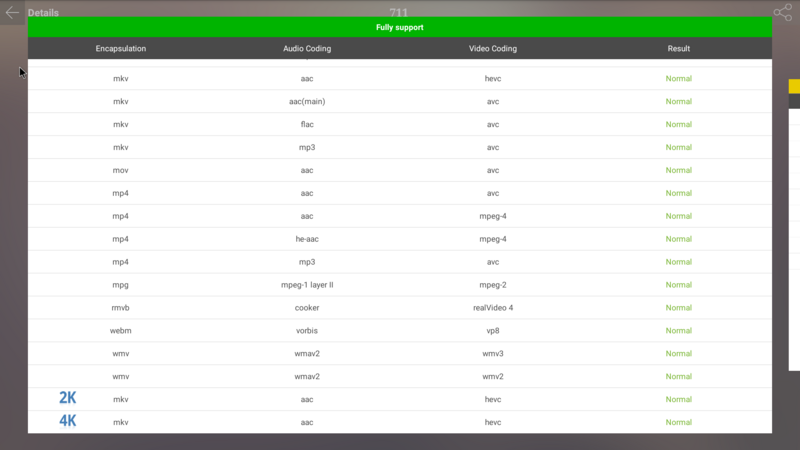

    Antutu Video Tester

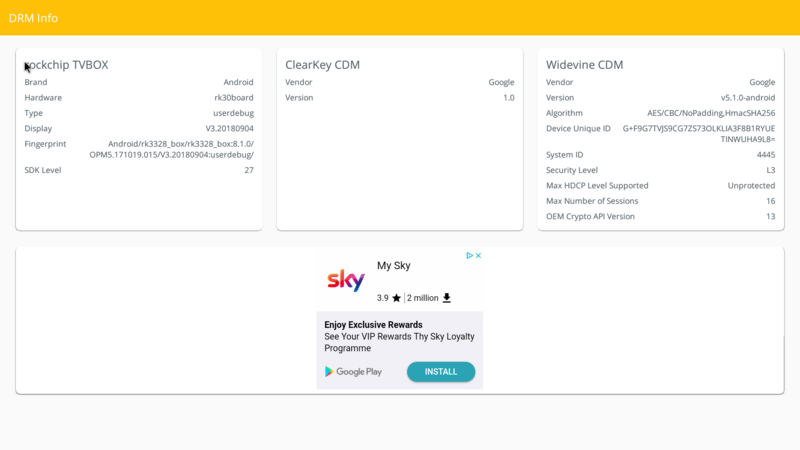

    DRM

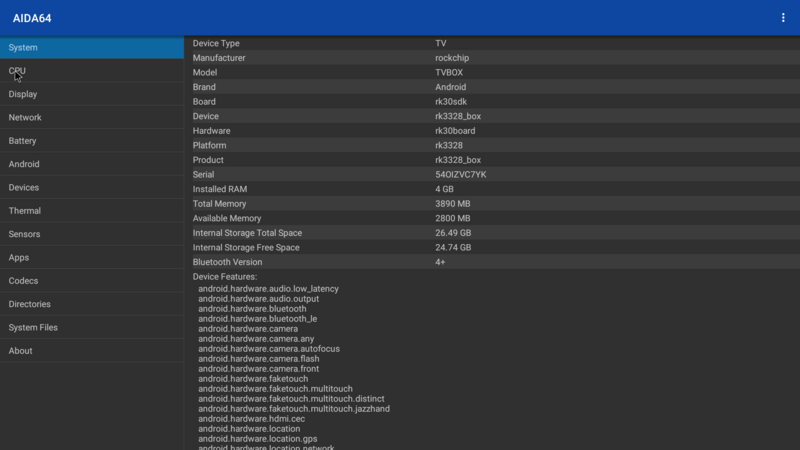

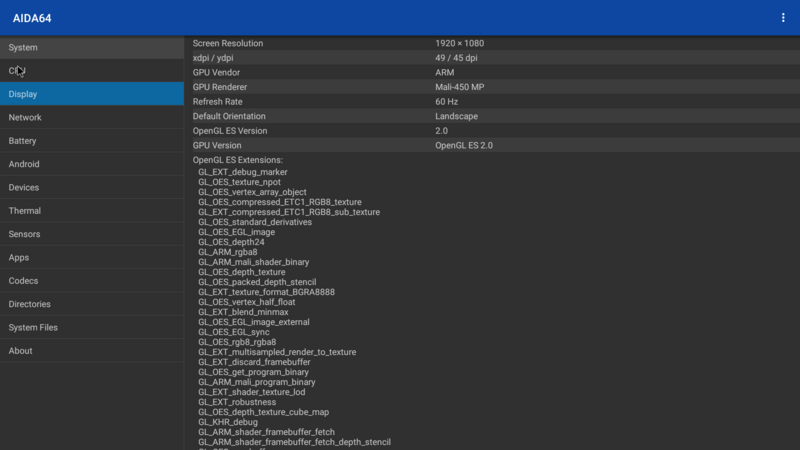

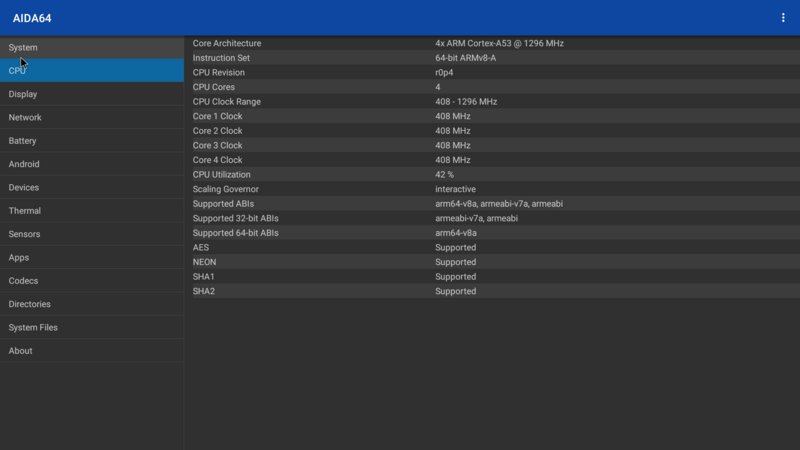

    AIDA 64

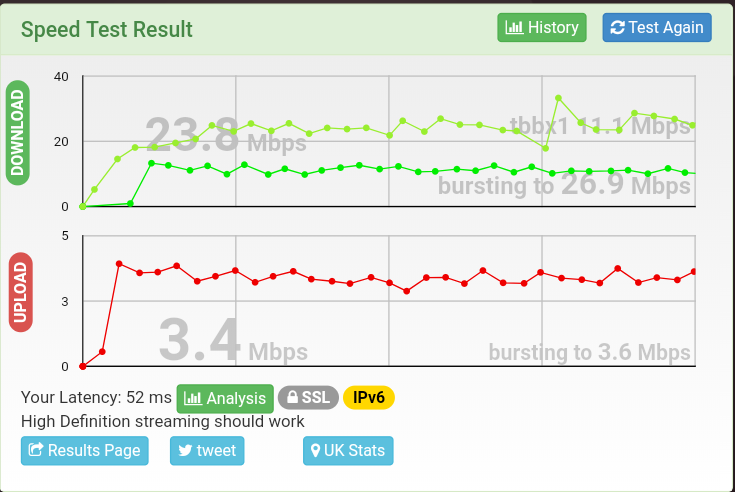

    WIFI
    My connection speed should be around 40MBPS




    Now some games testing
    Beach buggy blitz (Wont load)

    Ashpalt 8 loads and plays ok

    Ashpalt 9 (Wont load)

    Sixaxis app (dont work)



    Things tested
    Logitech c230 (Dont work)

    Sixaxis app (Dont work)

    Samsung 1TB external HD (Works)

    Tronsmart Mars G01 gamepad (Works)

    32GB micro SD card (Works)

    HDMI CEC (Works very well)



    FIRMWARE
    The device in this review came with FW V4.20180904 & this review is based on this FW

    Below is a updated FW v4.20181018 (Tested and working fine)

    FW

    https://mega.nz/#!u3ZDkazS!DGHbow90znhYZKD8AWHUsteWq1mw8ztulCcavNh 9kPI

    Driver assistant
    https://chinagadgetsreviews.com/download-rockchip-driver-assistant-v4-5.html

    RK factory tool
    http://geekbuying.mediafire.com/file...yTool_v1.6.zip
    The FW is very easy to flash as on most rockchip devices (No power lead is needed)

    1.Download Fw to pc

    2.install the rockchip driver assistant (Click uninstall driver first then install driver)

    3.Install RK factory tool & run it with admin rights

    4.Load FW into RK factory tool & press run

    5.Locate and press recovery button on tv box

    6.Connect USB lead to the USB port closest to the SD Card slot

    7.Flashing will start if you have installed the drivers correct



    FW Flashing video



    Model: T9

    Type: TV Box

    CPU: RK3328

    Core: Cortex A53,Quad Core

    GPU: Mali-450MP2

    RAM: 4GB DDR3 SDRAM

    ROM: 32GB eMMC

    System: Android 8.1 Oreo

    HDMI: HDMI 2.0 CEC, HDCP

    WiFi: 2.4GHz 802.11 b/g/n

    Lan: 100Mbps RJ45 Port

    Bluetooth: Bluetooth: 4.0

    USB Host: USB 2, support USB DISK and USB HDD

    TF Card: Support TF Card supports up to 32GB. ( Not included)

    SPDIF: SPDIF optical output

    AV: Composite AV output

    Mouse/ Keyboard: Support mouse and keyboard via USB; Support 2.4GHz wireless mouse and keyboard via 2.4GHz USB dongle, Bluetooth keyboard or mouse via Bluetooth. ( Not Included)

    HDD file system: FAT16/FAT32/NTFS

    3D: Hardware 3D graphics acceleration

    Support Subtitle: SRT/SMI/SUB/SSA/IDX+USB

    OSD type of languages: English/French/German/bish/Italian/ etc multilateral languages

    Power Supply: DC 5V 2A

    Power Consumption.: 10W

    Power Type: External Power Adapter

    Power Indicator (LED): Power ON Blue, sleep: Red

    Media Supported

    Decoder Format: H.265

    Video format: 4K,ASF,AVI,DAT,FLV,ISO,MKV,MPEG,MPG,RM,RMVB,TS,VOB ,WMV

    Audio format: AAC,AC3,APE,DDP,DTS,FLAC,HD,MP3,OGG,TrueHD,WAV,WMA

    Photo Format: BMP,GIF,JPEG,PNG,TIFF

    Interface: DC Power Port,HDMI,RJ45,SPDIF,USB2.0

    Remote Controller Battery: 2 x AAA Battery ( not included )

    Dimension and Weight

    Product weight: 0.2000 kg

    Package weight: 0.4500 kg

    Product size (L x W x H): 11.50 x 11.50 x 2.20 cm / 4.53 x 4.53 x 0.87 inches

    Package size (L x W x H): 43.50 x 30.50 x 30.00 cm / 17.13 x 12.01 x 11.81 inches

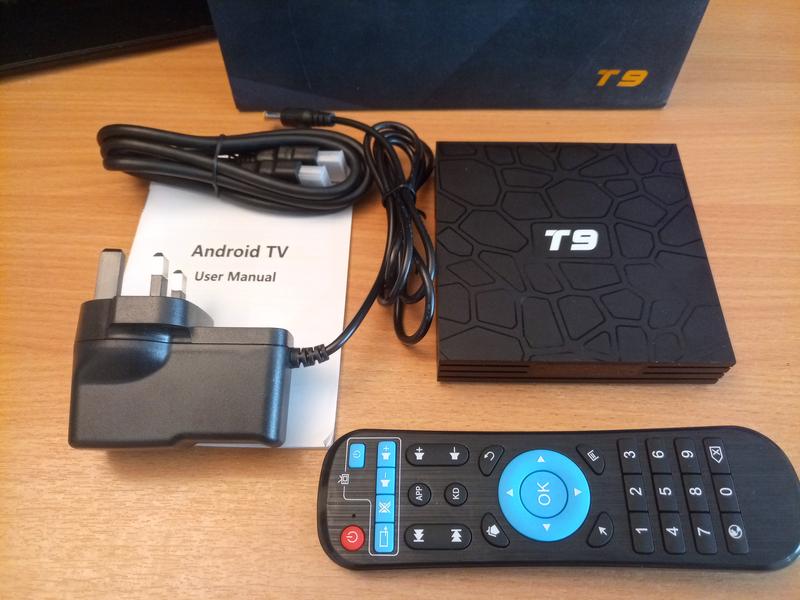

    Package Contents:

    1 x TV Box

    1 x Remote Control

    1 x Power Adapter

    1 x HDMI Cable

    1 x English Manual



    Unboxing Video

    To purchase the T9 Look here

    https://www.amazon.co.uk/dp/B07FYB2HK4
    To view more Sunvell products look here

    www.sunvell.com

    For Further Discussion Go here
