NAND Chip Mask ROM Mode Short Location

[lishoo]

You forgot to post the pic

[ROHIT.]

[bjagad]

MXQ PRO+ box samsung Nand KLMAG2GEAC-B002 short pin location is 31-32

https://drive.google.com/file/d/11ybm9l98tTn8urRF5Fmsg3rA-YA9sEFS/view?usp=drivesdk

[lishoo]

Anyone here can identify X96 MAQ5x3_141 V4.1 20112 new revision(!) ?

Revision 3.1 pins do not exist on this board, already scratched off slightly the surface to get to the copper lines.....no luck ...maybe I am supposed to sctratch off more - hope anyone knows

EMMC is hynix H26M52103FMR, https://www.elnec.com/en/device/SK+H...%5BFBGA153%5D/

BGA board...

Hi, I'v got an Magicsee N4 with the same chip h26m52103fmr, and I found the way to enter mask mode.
You must short pins with 0,1V and 3,3V with a wire.

[yangjian226200]

AMOI D8 tvbox ， RK3368 ， I tried many points around the toshiba memory chip and found it.

https://data.znds.com/attachment/forum/202202/03/220152dmx1m4vkv4ndddkm.jpg

[phankhanh86]

https://ibb.co/F5X7Bkt
for PrusaREvolPrusaREvol

[PrusaREvol]

Hello! Any ideas on how to short-pin this version? It is not detected using the male-male USB.
Thanks in advance.

[Hotrod1]

I find many page
but did't saw who post TX92-LP short pin
has anyone knows this model? thanks~

https://imgur.com/zT4CaGK

https://imgur.com/8QZMxSZ

CS_912_TX92_B8_V1.1 20190801

Try shorting the pins from the red and green boxes. I'm assuming you've read the procedure to enter Mask ROM.

https://i.imgur.com/4ECPSoJ.jpg

[murphy]

I find many page
but did't saw who post TX92-LP short pin
has anyone knows this model? thanks~

https://imgur.com/zT4CaGK

https://imgur.com/8QZMxSZ

CS_912_TX92_B8_V1.1 20190801

[h96maxuser]

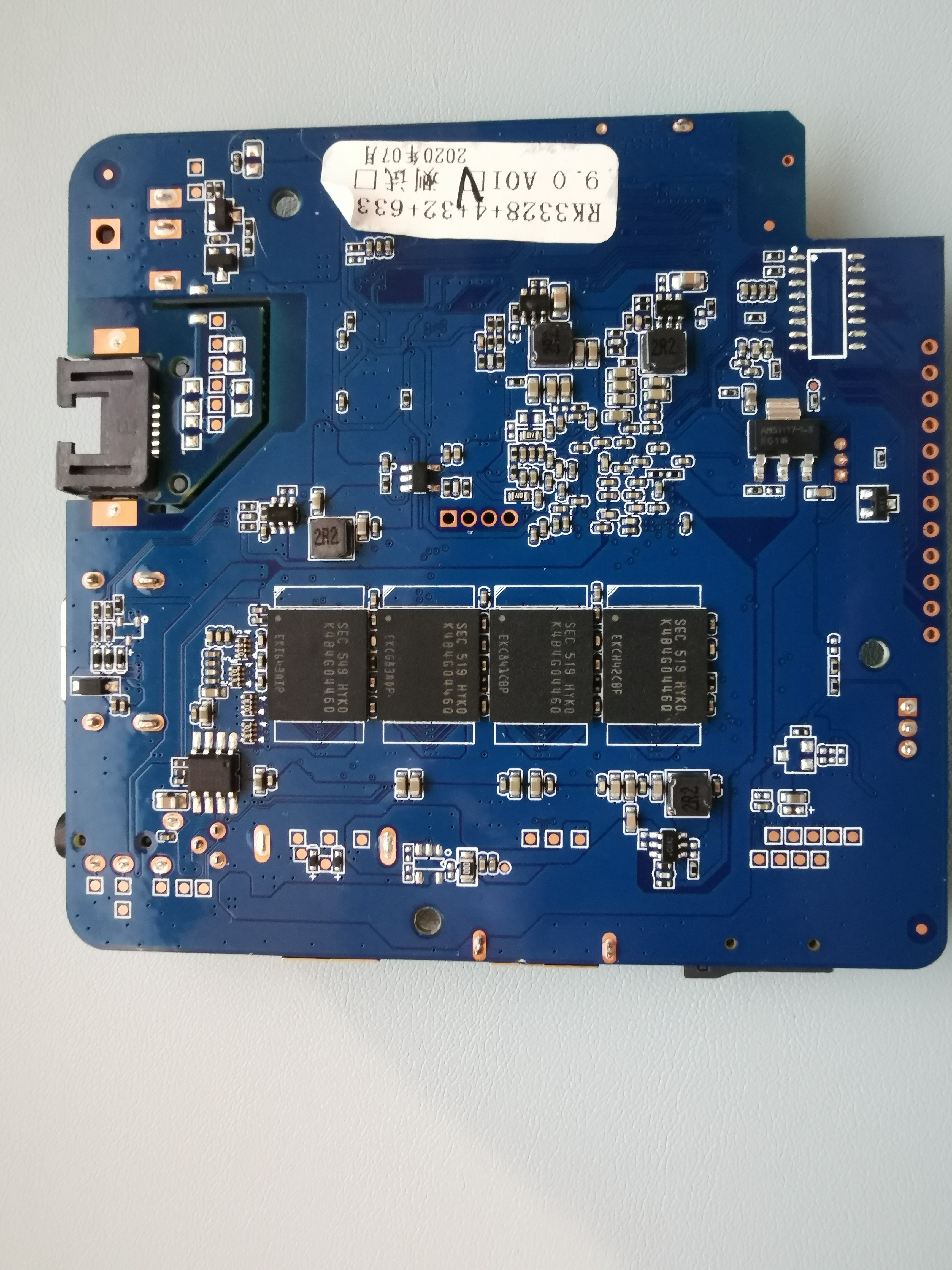

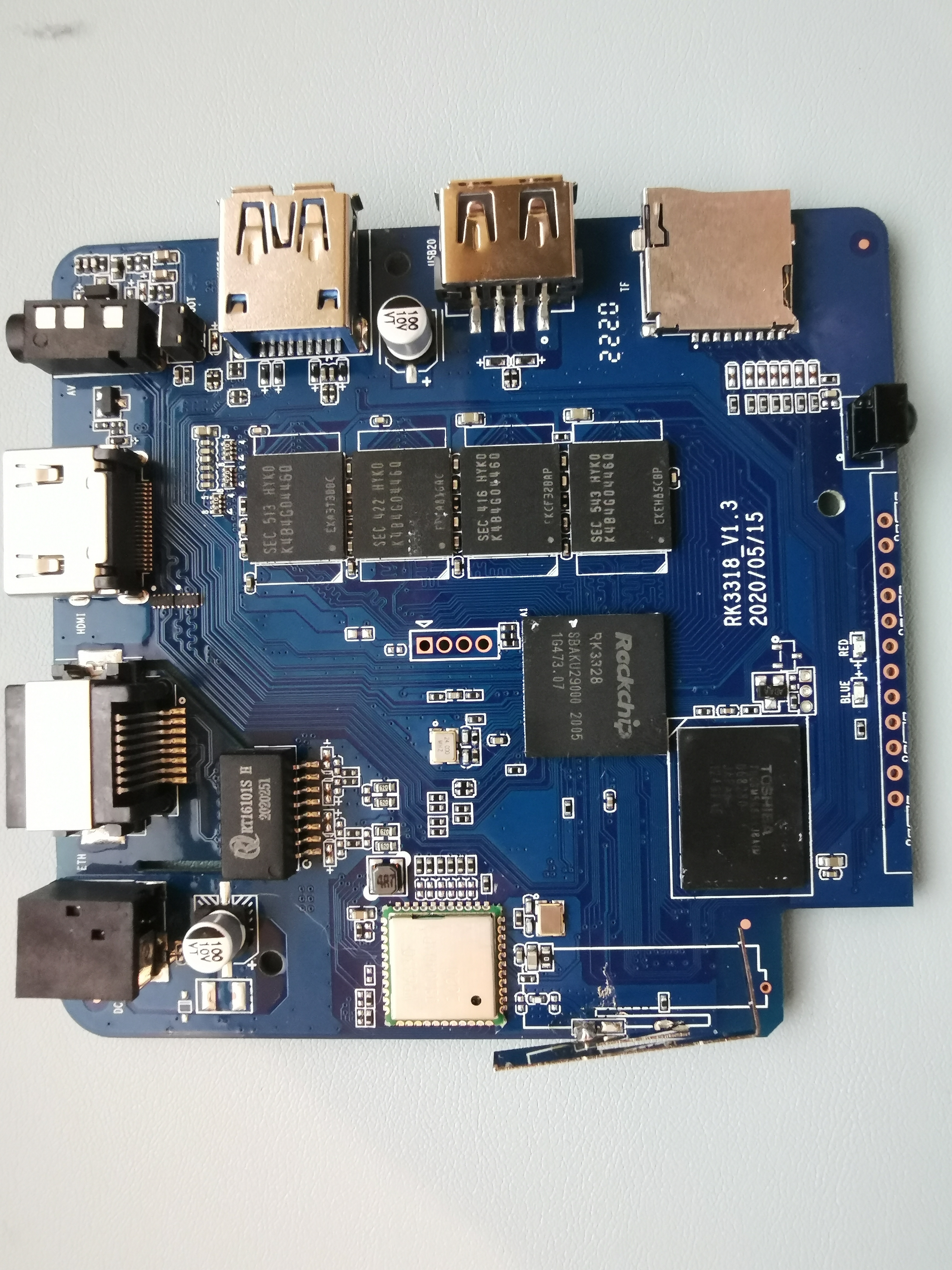

Anyone knows for a H96 Max + r3328 please ? Thanks

https://www.zupimages.net/viewer.php?id=21/49/kncl.jpg

https://www.zupimages.net/up/21/49/w9ux.jpg

[AnonymUnbekannter14]

ODYS Noon Pro?

RK3188

two 8GB NAND Chips

https://ibb.co/0BKJxwK

https://ibb.co/26z2g9N

[pecataske]

Short pins for anyone who have Spectek L95 MLC nand chip (PFC54-10AL and similar):

[Hotrod1]

I have a x92 box 3gb/32gb but i encounter errors when flashing on Amlogic burning Tool, is the pin's 17 and 18 to make short.

my emmc and my screen on Amlogic burning Tool

https://imageshack.com/i/pmdNTlmSp

An error during the flashing is normally due to using the wrong ROM for your device.

[sami002]

Hi any one know where is the rom short pins of this ssd sm2258xt thanks

the picture on the attachement

https://ibb.co/DbdDW8t
https://ibb.co/dpPcpv3

[Underd0og]

is the forum buggy that it does not accept uploading the images? I put two pictures and it gets all buggy.
